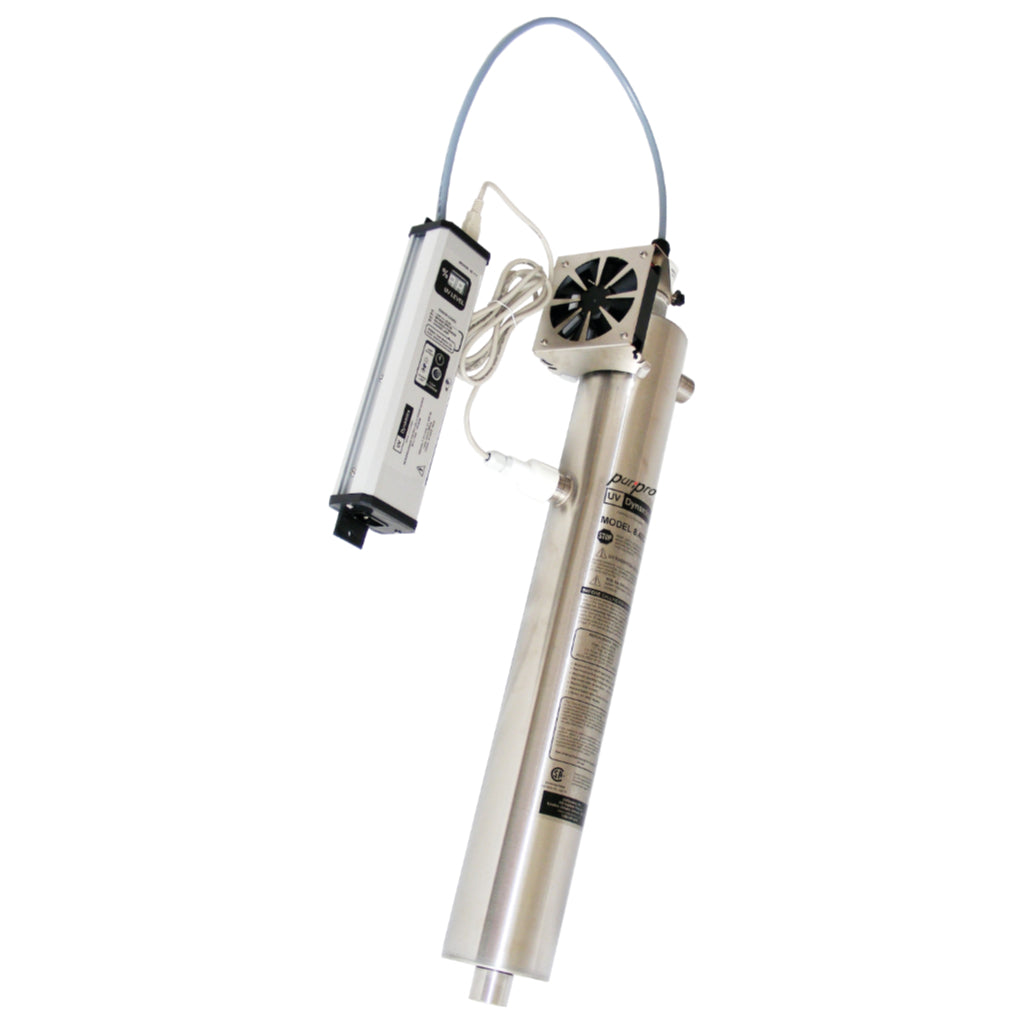

PURIPRO ULTRAVIOLET ULTIMATE SERIES

System Benefits:
With flow rates ranging from 8gpm to 20gpm, the NSF 55 certified series is
suitable for use in homes and cottages as well as small commercial and
industrial installations. This product uses a proprietary extended cold spot lamp
design along with an active temperature controlled cold spot cooling fan, resulting in improved lamp output maintenance during stagnant hot water conditions.
The micro-processor controlled UV power source has both audio and visual alarm
indicators to validate lamp operation and an integral annual lamp change reminder
timer. The UV display indicates actual dose in mj/cm2 at rated flow

Features

• Dynamic Flow Regulator
• Isolated Solenoid Drive
• Cold Spot FanTM
• Lamp up to 112watts
• AC Supply Voltage up to 240V 47-63Hz
• Annual Lamp Change Timer
• Lamp Change Grace Period 28 days
• Reactor Chamber Material 304SS
• 3 year warranty except consumables
• Maximum Operating Pressure 100psi (6.9bar)
• Maximum Ambient Temperature 40C (104F)
• Water Temperature Range 4 – 25C (40 – 77F)
• Lamp Service Life 9000hrs
• Inlet/Outlet 3/4” or 1”
